MIRTEC Full Line Catalog

With over 17,000 systems installed throughout the world and having received a total of 43 Industry Awards thus far for its products and services, MIRTEC has earned a solid reputation as one of the most progressive and dynamic suppliers of Automated Optical Inspection equipment to the Electronics Manufacturing Industry.

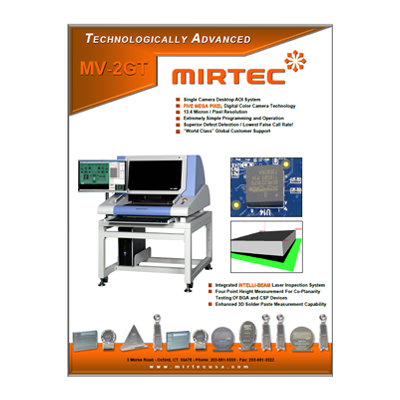

Mirtec MV-2GT AOI Product BrochureMIRTEC MV-2GT AOI Product Brochure

The Mirtec MV-2GT is a single camera desktop AOI System with FIVE MEGA PIXEL digital color camera technology and 13.4 Micron / Pixel resolution. Extremely simple programming and operation.

MIRTEC MV-3 OMNI AOI Product Brochure

Desktop 3D AOI system with exclusive FIFTEEN MEGA PIXEL CoaXPress Camera Technology. 10 Micron / Pixel precision telecentric compound lense.

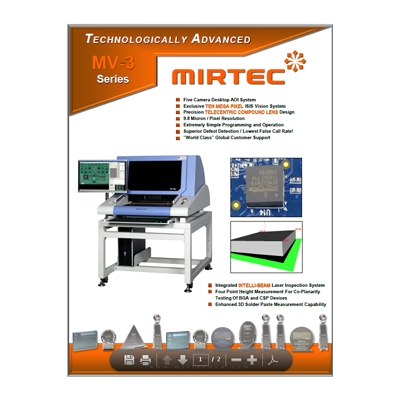

Mirtec MV-3 AOI Product BrochureMIRTEC MV-3 AOI Product Brochure

Five camera desktop AOI system with exclusive TEN MEGA PIXEL ISIS Vision System with precision TELECENTRIC COMPOUND LENS design.
9.8 Micron / Pixel Resolution

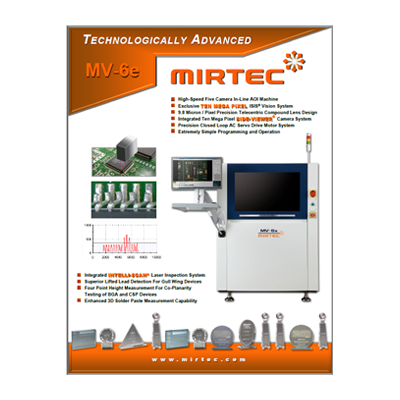

Mirtec MV-6e AOI Product BrochureMIRTEC MV-6e AOI Product Brochure

The Mirtec MV-6e Series In-Line AOI machine features the exclusive to mega pixel ISIS vision system, as well as an integrated Intelli-Scan 3-D laser inspection system. This 5 camera in-line AOI system is easy to use and simple to program.

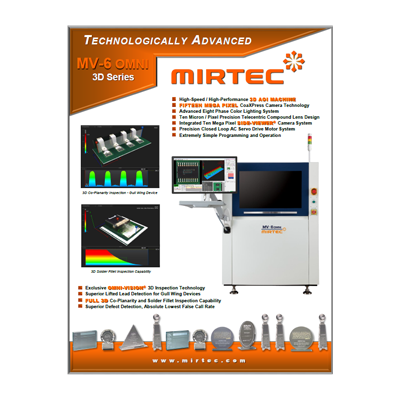

Mirtec MV-6 OMNI Product BrochureMIRTEC MV-6 OMNI Product Brochure

The Mirtec MV-6 OMNI featured exclusive OMNI-VISION 3-D inspection technology with superior Lifted Lead Detection for Gull Wing Devices, and full 3-D Co-Planarity and Solder Fillet Inspection capability.

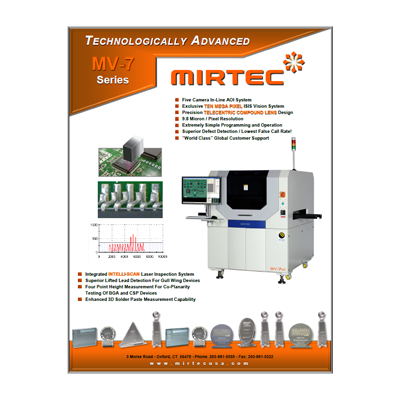

Mirtec MV-7 AOI Product BrochureMIRTEC MV-7 AOI Product Brochure

Five Camera In-Line AOI System with exclusive TEN MEGA PIXEL ISIS Vision System and precision TELECENTRIC COMPOUND LENS design.
9.8 Micron / Pixel Resolution.

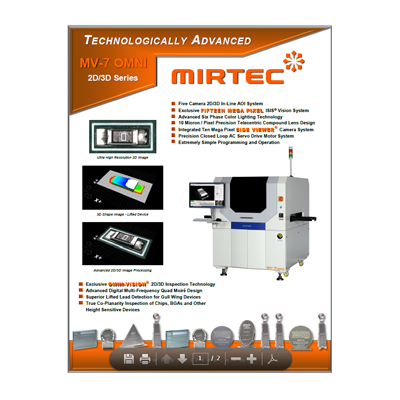

Mirtec MV-7 OMNI AOI Product BrochureMIRTEC MV-7 OMNI AOI Product Brochure

Five camera 2D/3D In-Line AOI system with exclusive FIFTEEN MEGA PIXEL ISIS® Vision System and advanced six phase color lighting technology. 10 Micron / Pixel Precision Telecentric Compound Lens design. Integrated Ten Mega Pixel SIDE VIEWER® Camera System.

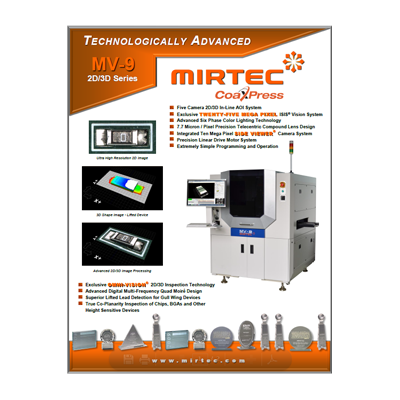

mirtec-mv9MIRTEC MV-9 AOI Product Brochure

Five Camera 2D/3D In-Line AOI System with exclusive TWENTY-FIVE MEGA PIXEL ISIS® Vision System.
Advanced Six Phase Color Lighting Technology.
7.7 Micron / Pixel Precision Telecentric Compound Lens Design. Integrated Ten Mega Pixel SIDE VIEWER® Camera System. Precision Linear Drive Motor System

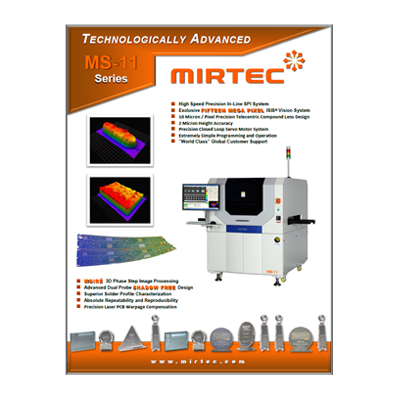

Mirtec MS-11 SPI Product BrochureMIRTEC MS-11 SPI Product Brochure

High Speed Precision In-Line SPI System.
Exclusive FIFTEEN MEGA PIXEL ISIS® Vision System
10 Micron / Pixel Precision Telecentric Compound Lens Design. 2 Micron Height Accuracy. Precision Closed Loop Servo Motor System.

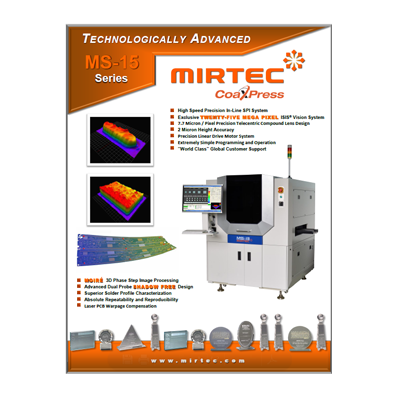

Mirtec MS-15 SPI Product BrochureMIRTEC MS-15 SPI Product Brochure

High Speed Precision In-Line SPI System
Exclusive TWENTY-FIVE MEGA PIXEL ISIS® Vision System. 7.7 Micron / Pixel Precision Telecentric Compound Lens Design. 2 Micron Height Accuracy. Precision Linear Drive Motor System.
